Features

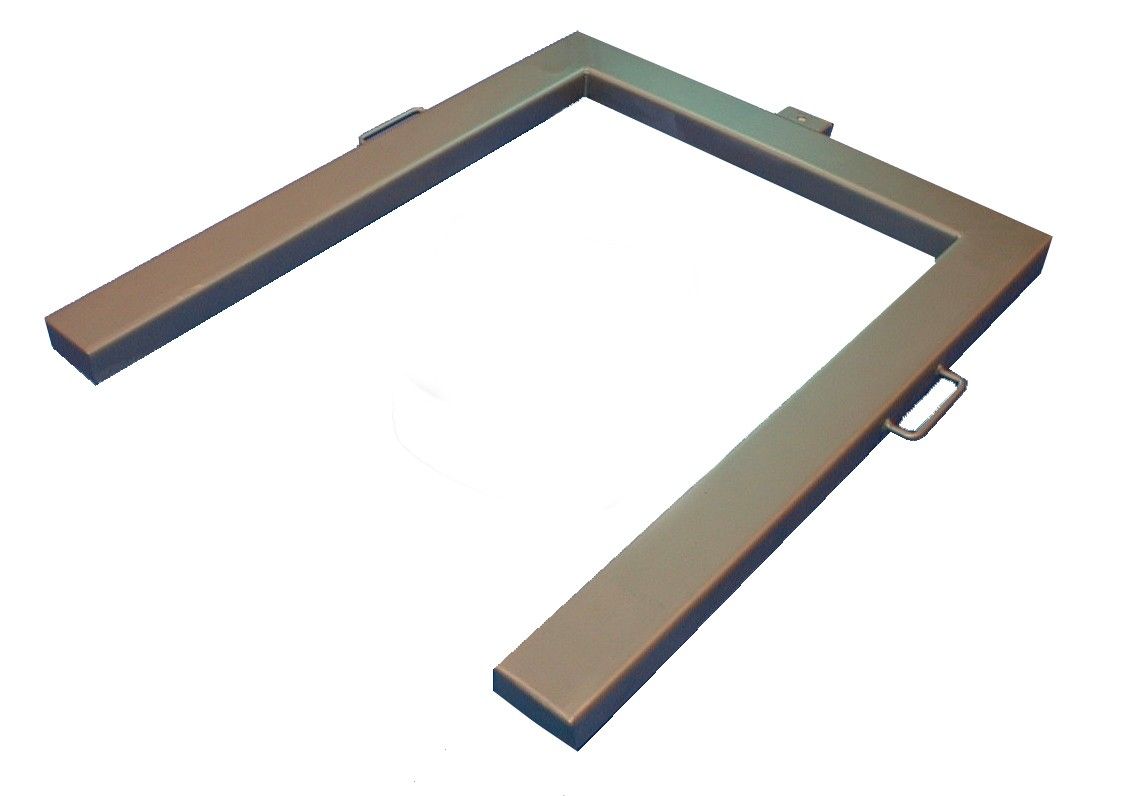

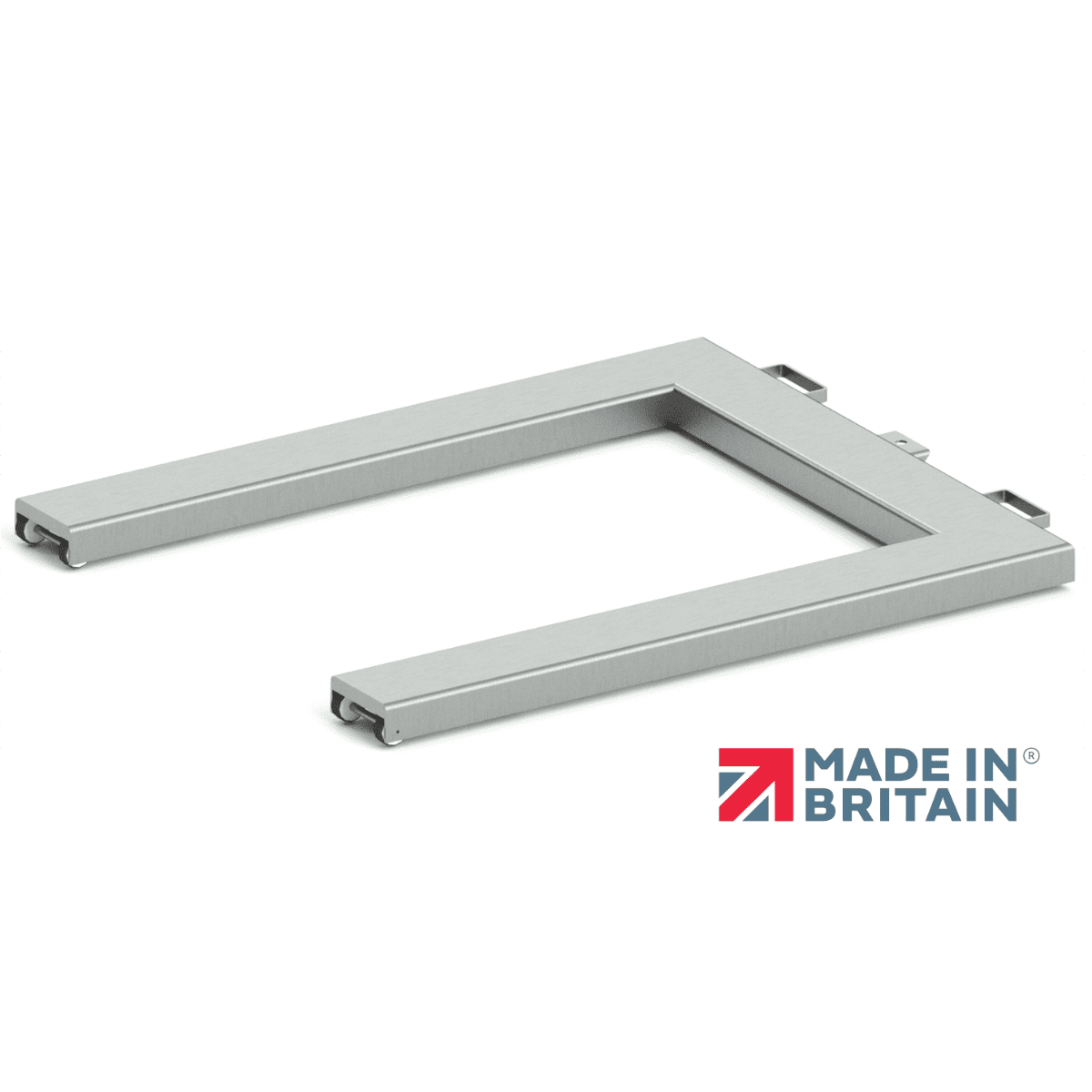

- The SPU is a portable U-Frame Scale
- Rear handles and wheels located at the front allow the SPU to be easily moved by one person
- Ideal for weighing IBCs, pallets and crates
- Designed and manufactured by MWS at our factory in Leicester
- Lower cost of ownership due to long-term lifespan of the product and fitted components
- Lifetime warranty on the structural integrity of the fabrication
- 5 year guarantee on components
| Material | 304 Stainless Steel |
| Finish | Hygienic Bead Blast |
| Capacity | 300kg to 3000kg |
| IP Rating | IP69 |
| ATEX Rated | Optional |
| Manufacturer | MWS Ltd |
| Price | From £2,360.00 |
Inquire about "SPU Stainless U-Frame"
PDF Download
Additional Info
The SPU is a hygienic U Frame scale that can be used to weigh pallets or IBCs. Front loading wheels make the SPU easy to manoeuvre by one person by simply lifting from the rear using the handle.
The SPU features IP69K load cells manufactured by Flintec and is fully wash down protected due to its IP rated junction box.
316 material options are available where there are more corrosive liquids or powders present.
We also offer electro polish finishes for pharmaceutical applications.
The SPU is designed and manufactured by the MWS production team at our head office in Leicester.
| Model | Weighing Area (mm) |
Load Height (mm) |
Max Capacity (kg) |
| SPU1008 | 1000 x 800 | 75 | 2,000 |
| SPU1010 | 1000 x 1000 | 75 | 2,000 |
| SPU1208 | 1200 x 800 | 75 | 2,000 |
| SPU1210 | 1200 x 1000 | 75 | 2,000 |
| SPU1212 | 1200 x 1200 | 75 | 2,000 |
Options
- Foot Location Plates (Stainless Steel)
- Upgrade to Flintec SB14 / IP68 Load Cells
- ATEX Certified Load Cells & Intrinsically Safe Junction Box (JB4QAI)
- Load Cell Cable Option from 5–25m (Price per Metre)
- 316 Stainless Steel Material
- Electro Polish Finish
- Custom sizes, Heights & Construction
