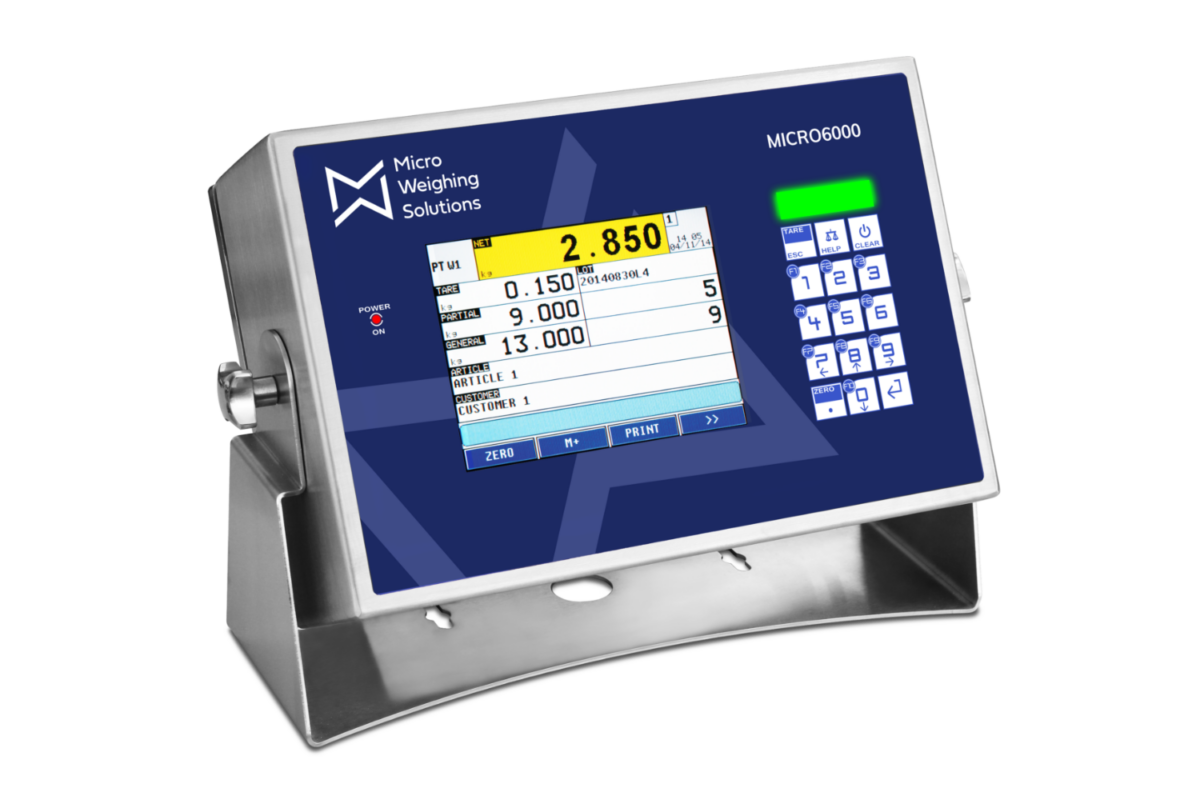

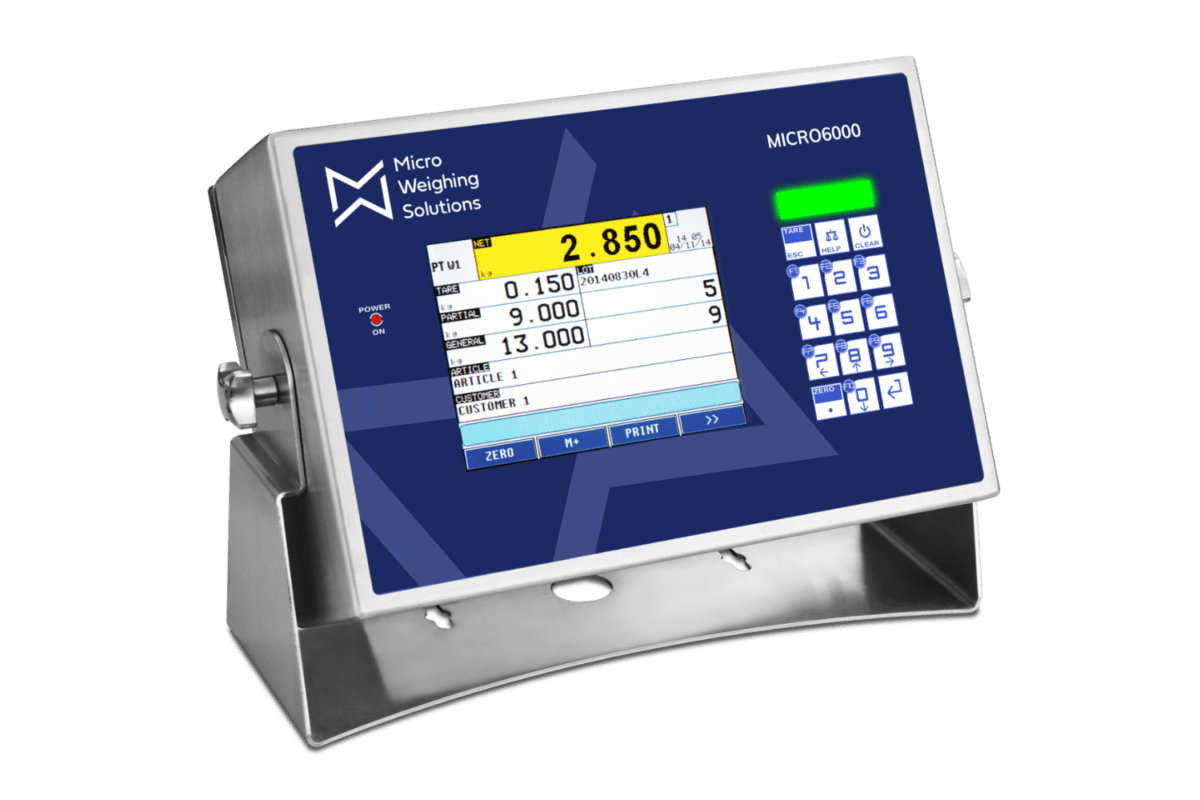

  • MWS Ltd Micro 6000 touchscreen weight indicator

Features

  • 5.7 inches (160x90mm) resistive backlit colour touch screen graphic display.
  • 3 colour high brightness LED control light.
  • Real time clock and permanent data storage.
  • As standard fitted with an adjustable bracket, for bench or wall mounting.
  • Available touch screen keyboards: QWERTY, AZERTY or QWERTZ.
Display 5.7" Touchscreen
IP Rating IP68 Stainless Steel
Power Mains 110-230v
Weighing Inputs 4 Channels
Inquire about "Micro 6000 Weighing Terminal"
  • This field is for validation purposes and should be left unchanged.

Additional Info

A cost effective weighing indicator that comprises of a 5.7 inches touch screen display and a variety of functionality for enhanced usability in a wide range of weighing applications.

The stainless steel IP68 housing is complete with an adjustable viewing angle bracket that can be mounted onto a column or directly on a wall.

The built-in LED control light on the front panel proved a simple traffic light guide for operators who are weighing to targets. The integrated Ethernet port allows connectivity to PC networks and WeighLogic software applications.

Thanks to completely customisable screen layouts it can display all the weighing data, database records and free texts, this considerably simplifies the user operations.

Standard Onboard Applications

  • AF01: Totalization and formula weighing (integrated)
  • AF02: Pieces/quantity counting (optional)
  • AF03: Weighbridges – Input/Output vehicle (optional)
  • AF04: Statistical checking of prepackaged goods (optional)
  • AF05: Price computing and industrial labelling (optional)
  • AF08: Wheel and axle static weighing with 2 or various platforms (optional)
  • AF09: Software for dynamic and static axle weighing with 1 or 2 platforms (optional)
  • BATCH1: Single product dosage systems in loading and unloading (optional)
  • BATCH: Software for multicomponent dosage systems in loading and unloading (optional, IOEXPB board must be included)

Extended Functionality

The Micro 6000 also connects to our WeighLogic software for a variety of networked applications that enhance the standard terminal.

The WeighLogic application suite consists of the following modules

Contact MWS to learn more about enhanced traceability and functionality using the WeighLogic software system.
