  • MICRO5000 Touch Screen Weight Indicator

Features

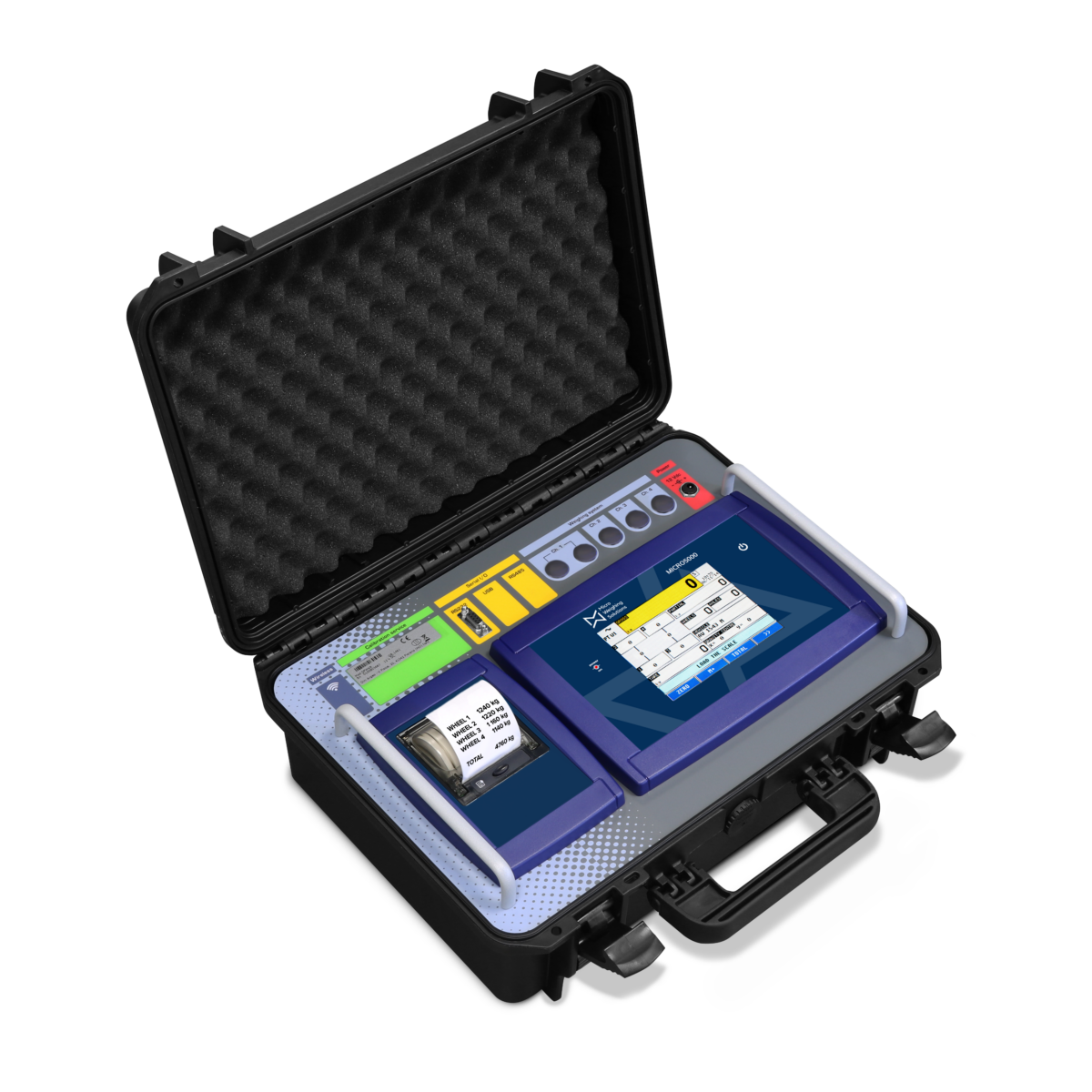

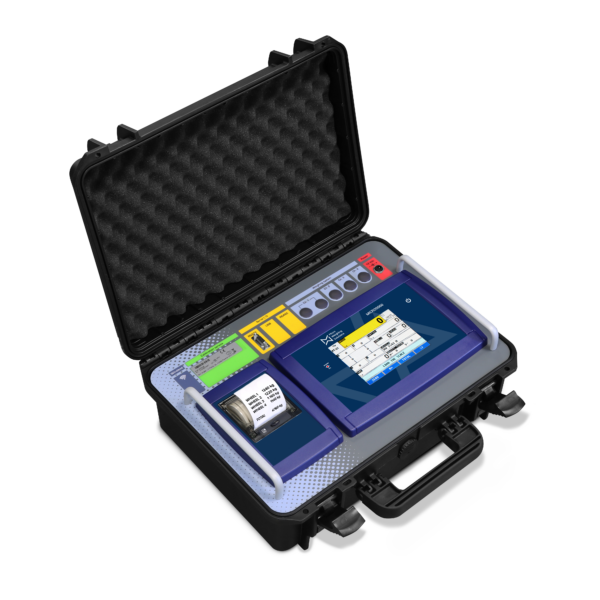

  • ABS transport case, with housing for the indicator and space for extra accessories
  • MICRO5000ET series indicator fits in a metallic rack type assembly with dimensions of 270x440mm. Complete with housing for printer, connectors for platforms, and serial output on 9-pole connector

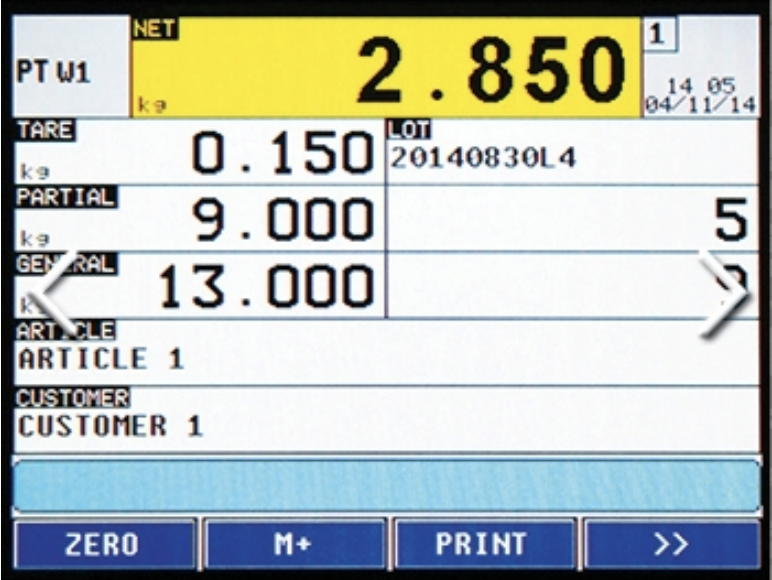

  • Backlit graphic display with touch screen technology, 120x90mm size
  • Fully customisable screens
  • Multi-language software
  • Fitted with attached thermal printer
  • QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen
  • Real-time clock and permanent data storage
  • Fitted alibi memory, integrated on the motherboard
  • Slot for built-in micro SD for recording the configuration, logos and customised screens (upon request)
  • 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points
  • 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight
  • Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm)
  • Up to 10,000e OIML or 3 x 3000e @ 0.3 μV/e CE-M legal for trade
  • Up to 1,000,000 displayable divisions for internal factory use, with internal resolution up to 3,000,000 points
  • Connectable to printers and labellers with free programming of the printout formats
Dimensions 325 x 460 x 170mm
Weight approximately 5kg
Power Built-in rechargeable battery, with an operating time of approximately 10 hours
Inquire about "MICRO5000 Touch Screen Weight Indicator"
  • This field is for validation purposes and should be left unchanged.

Additional Info

The Micro5000 is a digital weight indicator with a big touch screen display, suitable for the weighing of vehicles, planes and objects with multiple points of support. It allows the visualisation of all the weighing data and the customisation of the screens, simplifying the user operations. Fitted with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).

Customised Applications

Thanks to our integrated development, you can create fully customised applications:

  • Wizards, operator messages
  • Serial port management, protocols customisation
  • Digital I/O full management
  • Sequential or simultaneous automations
  • Data entry, custom archives
I/O Section

Available on panel:

  • One RS232 serial port, for connection to PC, on 9-pole connector

Available on internal side:

  • 1 RS232 serial port, for connection to printer, radio module, PC or PLC, badge reader or remote scale
  • 1 RS232 serial port, for connection to printer, remote scale, badge reader or digital load cells
  • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional)
  • Up to 4 optoisolated outputs (optional)
  • Up to 2 optoisolated outputs (optional)
Available Languages

Menu selectable languages:

  • IT, EN, FR, DE, ES, PT, PL*
  • *Polish only available on EGT-AF03, EGT-AF09

Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):

  • Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
  • Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
  • Windows 1251: RU, UK, BE, BG, SR, MK, EN
  • Windows 1253: EL, EN
  • Windows 1258: VI, EN, FR
Main Certifications
  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 – MID
  • OIML R134 (AF09)
