Client Benefits
- Designed for Improved hygiene levels and ease of sanitation
- Ramps prices shown are for ramps fitted to the short side of the scale
- The LPS has a low loading deck of just 75mm, for safer use by operators when used with a loading ramp
- Lower cost of ownership due to longterm lifespan of the product and components fitted
- Optional outer frame for protection from fork lift trucks
- Lifetime warranty on the structural integrity of the fabrication. Other components are covered for 5 years.
Material | 304 / 316L (option) |
Capacity | 300kg to 3000kg |
Sizes | 600 x 600mm to 2000 x 1500mm |
Finishes | Bead Blast / Electro Polish / Grained |
Options | ATEX Upgrade / Bespoke Sizes |
Manufacturer | MWS Ltd |
Price | From £2,295.00 |
Inquire about "LPS Stainless Floor Scales"
PDF Download
Additional Info

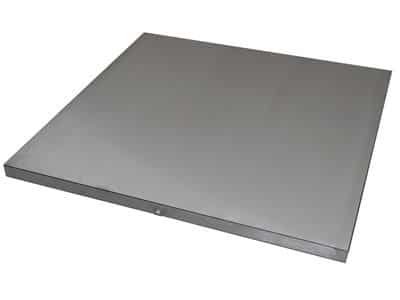

The LPS is a family of platforms that cover a range of stainless steel floor scales for use in food, pharmaceutical and chemical environments. The LPS range is available in a combination of sizes and capacities suitable for a majority of applications.
MWS manufactures these floor scales to order, so they can be designed with specific applications in mind. The LPS range has been incorporated into vessels, special models including integrated gutters for chemical run-offs, and scales for use in extreme temperature areas, nuclear waste processing industries, plus many more applications.
Construction
The LPS range is manufactured in 304 grade stainless steel (316L available upon request) box section using high end welding techniques. The top loading plate is 5mm thick, ideal for spreading the load and making sure the top does not buckle over time. Fitted with IP68 load cells and junction box as standard, guaranteeing that the LP is waterproof enough for companies with the strictest sanitation policies, the LP is designed for ease of cleaning and can even be washed down with a high pressure / high temperature jet wash.
Finish
A glass bead blast top and bottom is used to finish the LP which gives a high level of hygiene, good enough for a majority of applications. However, upon request a grained or electro polish finish can be supplied to improve the surface finish further for chemical and pharmaceutical applications.
Options
The LPS can be specified for use in areas where highly corrosive materials maybe present. The upgraded materials include protected cables and 316L stainless steel. Other options include side rails, overload protection and many more options that are client led.
Built to suit
With any platform designed and manufactured by MWS, there are a number of options and sizes available as standard, however we also have the ability to manufacture one-offs and create bespoke systems to suit exact client specifications.
Standard Models
Model | Size | Height | Capacity | Load Cell |
LPS60 | 600 x 600 mm | 75 mm | 300 – 600 kg | Flintec SLB |
LPS75 | 750 x 750 mm | 75 mm | 300 – 600 kg | Flintec SLB |
LPS80 | 800 x 800 mm | 75 mm | 300 – 600 kg | Flintec SLB |
LPS1010 | 1000 x 1000 mm | 75 mm | 300 – 1000 kg | Flintec SLB |
LPS1210 | 1250 x 1000 mm | 75 mm | 300 – 2000 kg | Flintec SLB |
LPS1212 | 1250 x 1250 mm | 75 mm | 300 – 3000 kg | Flintec SLB |
LPS1512 | 1500 x 1250 mm | 75 mm | 300 – 3000 kg | Flintec SLB |
LPS1515 | 1500 x 1500 mm | 75 mm | 300 – 3000 kg | Flintec SLB |
LPS1812 | 1800 x 1250 mm | 75 mm | 300 – 3000 kg | Flintec SLB |
LPS2015 | 2000 x 1500 mm | 85 mm | 300 – 3000 kg | Flintec SLB |
