  • GLF Stainless Steel Floor Scale manufactured in the UK

Features

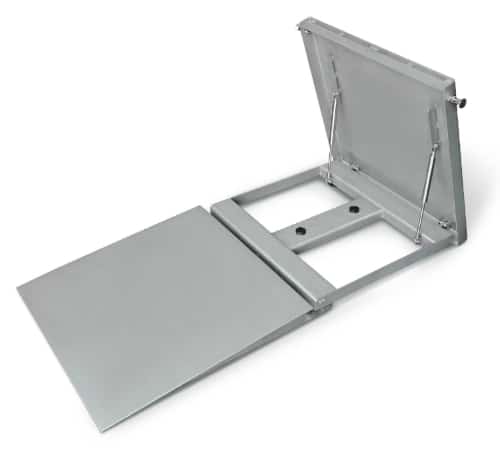

  • The GLF is a hygienic floor scale with gas assisted top plate to improve cleaning processes in a safe manner
  • Two stainless steel gas struts enable easy lifting of the load plate
  • Two stainless steel locking pins prevent accidental opening of the top plate
  • Lower cost of ownership due to longterm lifespan of the product and fitted components
  • Lifetime warranty on the structural integrity of the fabrication
  • Components are covered for 5 years
Material 304 or 316 Stainless Steel
Capacity 300kg to 1,500kg
Sizes 750 x 750mm to 1250 x 1250mm
Finish Bead Blast (Electro Polish Option)
Options Bespoke Sizes / ATEX Upgrade
Manufacturer MWS Ltd
Price From £4,595.00
Inquire about "GLF Stainless Steel Floor Scale"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The GLF is a surface mount stainless steel scale that is designed and manufactured in Leicester by MWS. Its main feature is a gas strut assisted top deck making routine cleansing in high risk areas easier. Every GLF is supplied with one ramp.

Construction:

The GLF range is manufactured using 304 grade stainless steel (316L available upon request) box section and high end welding techniques. The GLF is free from hidden crevices and holes that allow moisture to build up harbouring bacteria and parasites. The gas-assisted plate is hinged on one side and is safely operated by a single user. It is fitted with IP68 load cells and junction box as standard, guaranteeing that the GLF is a truly waterproof floor scale even when washed down with a high pressure, high temperature jet wash.

Finish:

A glass bead blast top and bottom is used to finish, which gives an acceptable hygiene level for a majority of applications. However, a grained or electro polish finish can be added on request to improve the surface finish further.

Options:

The GLF can be specified for use with dolavs and trolleys, and includes the optional addition of laser profiled side rails to protect the operator from accidentally pushing items off the back or side of the scales.

Built to suit:

With any platform designed and manufactured by MWS, there are a number of options and sizes available as standard. However, a USP and key benefit of choosing MWS as a supplier is our ability to manufacture one-offs and systems to suit exact client specifications.

Standard Models

Model Size Height Capacity Load Cell
GLF75 750 x 750 mm 75 mm 300 – 1000 kg Flintec SB14
GLF1010 1000 x 1000 mm 75 mm 300 – 1000 kg Flintec SB14
GLF1212 1250 x 1000 mm 75 mm 300 – 2000 kg Flintec SB14
