  • Mild steel low profile platform scale manufactured by MWS Weighing Solutions

Features

  • Designed for easy weighing of dolavs, racks and trolleys in manufacturing industries
  • Compact unit - it takes up the minimum of floor space
  • Folded from a single piece of mild steel for extra strength and total flatness
  • Lifting handles double as ramp guides for trolleys
  • Lifetime warranty on the structural integrity of the fabrication, other components are covered for 5 years
Material Mild Steel
Finish Powder Coat RAL5015
Load Cells Flintec SLB / IP67 OIML
Foot Assembly Rocker Pin (T-end)
Junction Box IP67 ABS Plastic
Cable Length 5,000 mm
Temp Range -10°C . +40°C
Manufacturer MWS Ltd
Price From £2,895.00
Inquire about "DTMR Low Profile Platform Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

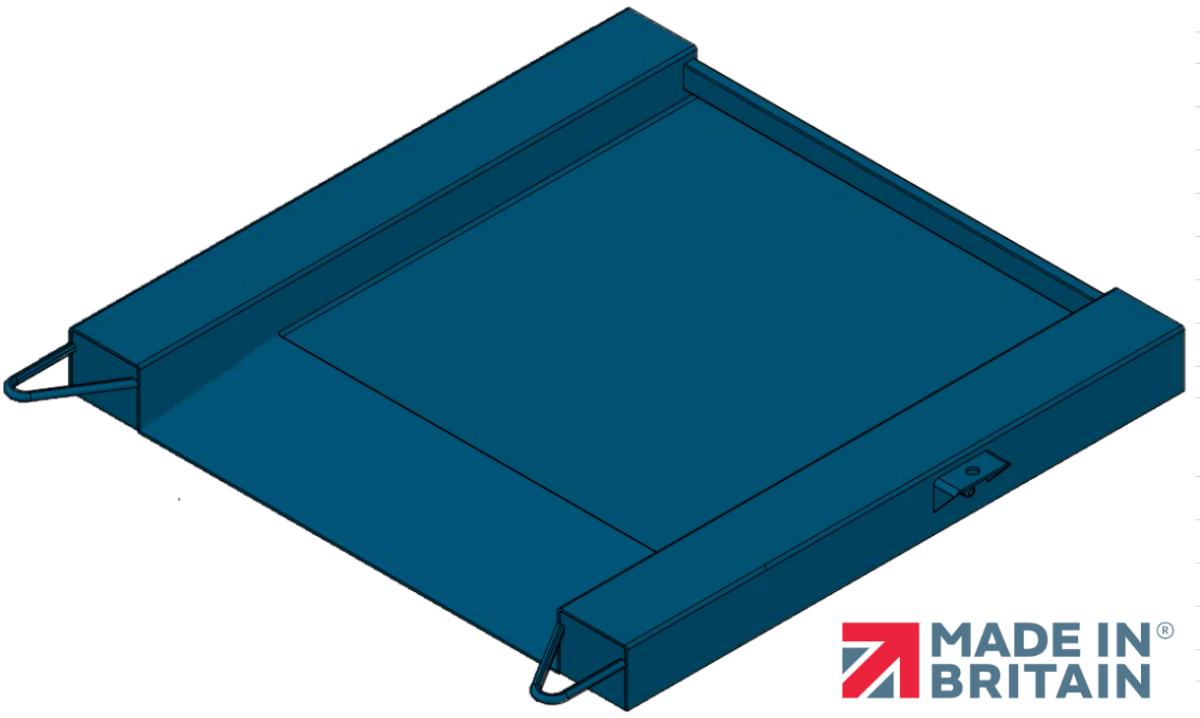

Introducing the DTMR Platform Scale by MWS Ltd, a compact and robust solution designed for easy weighing of dolavs, racks, and trolleys in manufacturing industries. Crafted from a single piece of mild steel, this space-saving scale ensures extra strength and complete flatness.

The lifting handles double as ramp guides for added versatility. Proudly manufactured in the UK, the DTMR Platform Scale exemplifies MWS Ltd’s commitment to quality and innovation, providing reliable precision in a minimal footprint.

Model Weighing Area
(mm)
Load Height
(mm)
Total Footprint
(mm)
Max Capacity
(kg)
DTMR75 750 x 750 40 1000 x 750 600
DTMR1010 1000 x 1000 40 1250 x 1000 600
DTM2R75 750 x 750 40 1250 x 1000 600
DTM2R1010 1000 x 1000 40 1500 x 1250 600

Options

  • Welded Column for Weight Indicator with Universal Indicator Bracket
  • Upgrade to Flintec SB14 / IP69K Load Cells
  • ATEX Certified Load Cells & Intrinsically Safe Junction Box (JB4QAI)
  • Load Cell Cable Option from 5–25m (Price per Metre)
  • Welded Back Rail (Single Ramp Version Only)
  • Alternative RAL powder coat colours
  • Custom sizes, Heights & Construction
