Customer Benefits

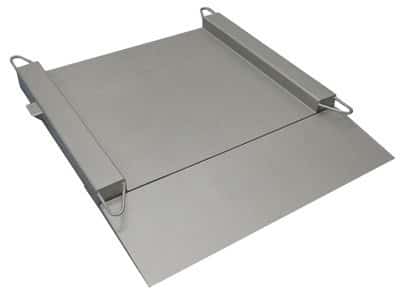

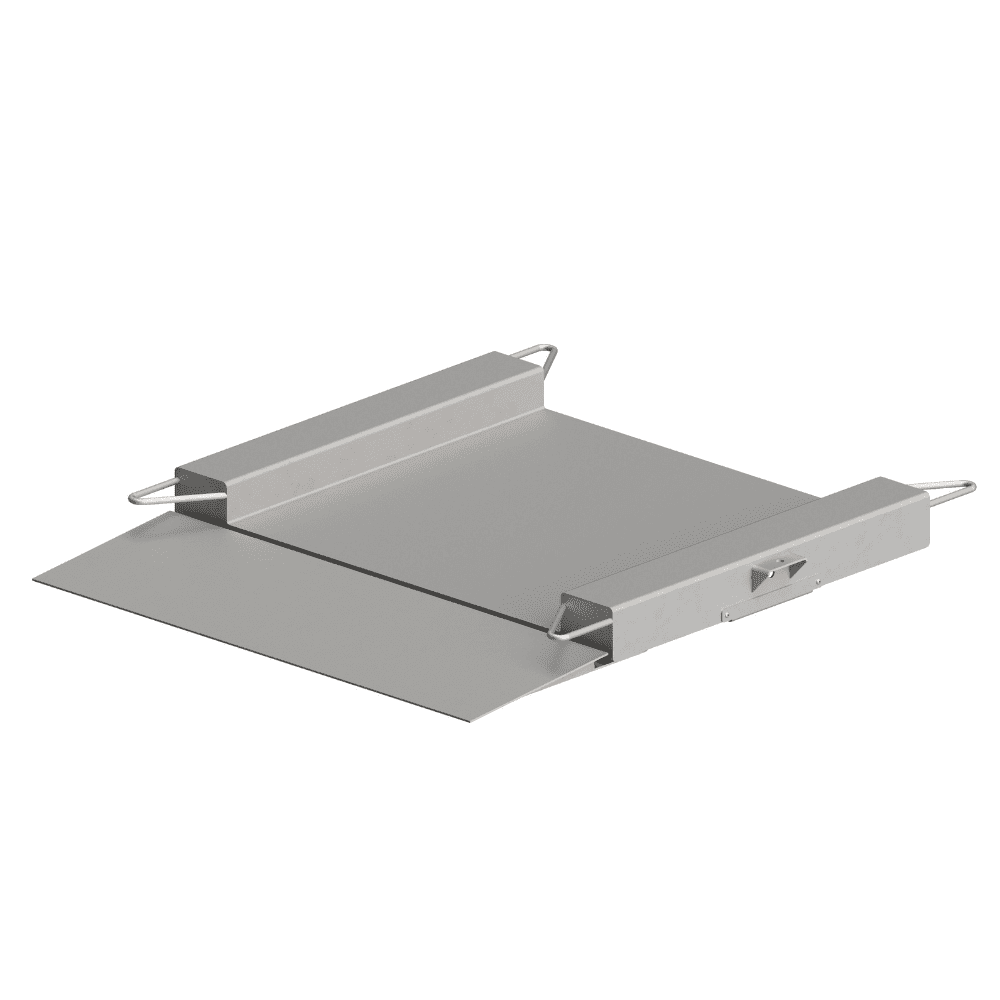

  • Designed for easy weighing of dolavs, racks and trolleys in manufacturing industries
  • The DTS is a compact low profile scale - it takes up the minimum of floor space
  • The main fabrication structure is folded from a single piece of stainless steel for extra strength and total flatness
  • Lifting handles double as ramp guides for trolleys
  • Lifetime warranty on the structural integrity of the fabrication, and other components are covered for 5 years
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Material 304 or 316 Stainless
Standard Finish Bead Blast
Capacity Range 150 - 2000Kg
Sizes 500 x 500mm to 2000 x 1250mm
Upgrades ATEX / Bespoke Sizes
Inquire about "DTS Drive Through Scales"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The DTS range of drive through scales is designed and manufactured in Leicester by MWS. Its main feature is a low profile weighing deck for easier and safer loading by operators. Its design enables us to ensure that the unit is strong enough to cope with loads up to 2000kg yet remain less than 50mm high.

The DTS is manufactured in 304 grade stainless steel (316L available upon request) and is suitable for use in areas where there is an abundance of moisture. It is fitted with IP68 load cells and junction box as standard, making the DTS a truly waterproof floor scale built for the rigours of the food and chemical industry.

A glass bead blast top and bottom is used to finish, which is hygienic for a majority of applications. However, upon request a grained or electro polish finish can improve the surface finish.

Standard Models

Model Size Height Capacity Load Cell
DTS75 750 x 750 mm 35 mm 300 – 600 kg Flintec SLB
DTS80 800 x 800 mm 40 mm 300 – 600 kg Flintec SLB
DTS1010 1000 x 1000 mm 50 mm 300 – 600 kg Flintec SLB
DTS1212 1250 x 1000 mm 50 mm 300 – 2000 kg Flintec SLB
DTS1512 1500 x 1250 mm 50 mm 300 – 2000 kg Flintec SLB
DTS1515 1500 x 1500mm 50 mm 300 – 2000 kg Flintec SLB
DTS2015 2000 x 1500mm 50 mm 300 – 2000 kg Flintec SLB
