Features

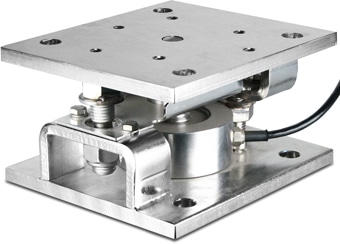

  • Simple and easy to install using optional load cell mount
  • Excellent weighing characteristics for vessels and silos
  • 5mtr cables for 250...5000Kg versions, 10mtrs for 7500Kg and above.

Call us to arrange a free demo on 0845 340 4042

Type Compression
Capacities 250 to 100,000Kg
IP Rating IP68
Construction Stainless Steel

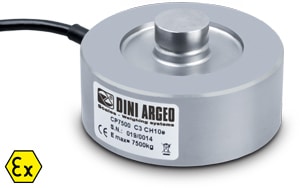

Inquire about "CP – Compression Load Cell"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

CAPACITIES (kg): 250, 500, 1000, 2500, 5000, 7500, 10000, 15000, 30000, 50000, 100000.

Technical Features

  • Full Scale Output: 2mV/V +/- 0,5%
  • Non-Repeatability: 0,01% F.S.
  • Temperature effect on zero: 0,02% / 10°C
  • Temperature effect on full scale output: 0,02% / 10°C
  • Compensated Temperature Range: -10°C/+50°C
  • Operating Temperature Range: -20°C/+60°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Maximum tolerated excitation voltage: 10 VDC
  • Input Resistance: 750 ± 10 Ohm
  • Output Resistance: 700 ± 5 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 120% F.S.
  • 4-wire shielded cable, 5 mm diameter
    – 5 m long for CP 250…5000 versions;
    – 10 m long for CP 7500…100000 versions.

ATEX Version

  • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
    ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
    ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
    The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
  • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
