Features

  • Automatically Calculates T1/T2 from Nominal Values
  • Data exchange via USB
  • Touchscreen display for ease of use

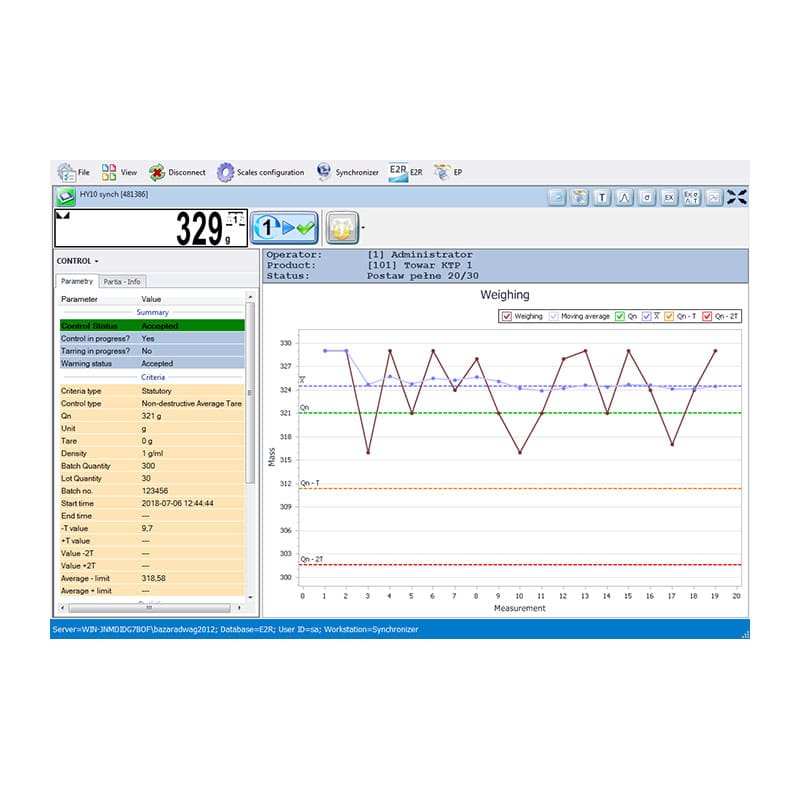

  • E2R Software for recording and reporting data over Ethernet

Call us to arrange a free demo on 0845 340 4042

Communication USB / Ethernet / RS232
Display 5.7" Touchscreen
Approval Fully 'M' & EC Approved
Product Code WX-010-0051
Inquire about "HY10 Average Weight System"
  • This field is for validation purposes and should be left unchanged.

Additional Info

Weights and measures legislation for the control of packaged goods is often dressed up as a complex issue. The government has issued a detailed document for companies that need to pack to fixed weights to offer help and advice on how they achieve compliance.

Visit the Government Legislation site regarding The Weights and Measures (Packaged Goods) Regulations 2006.

Our Average Weight System allows companies to weigh and record samples whilst producing reports for end of batch via printers or dedicated networked software.

Call MWS for advice and pricing on our Average Weight Scale Systems.

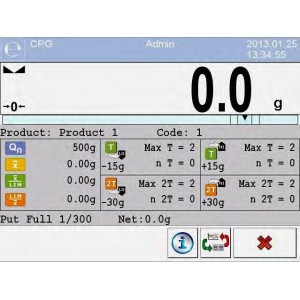

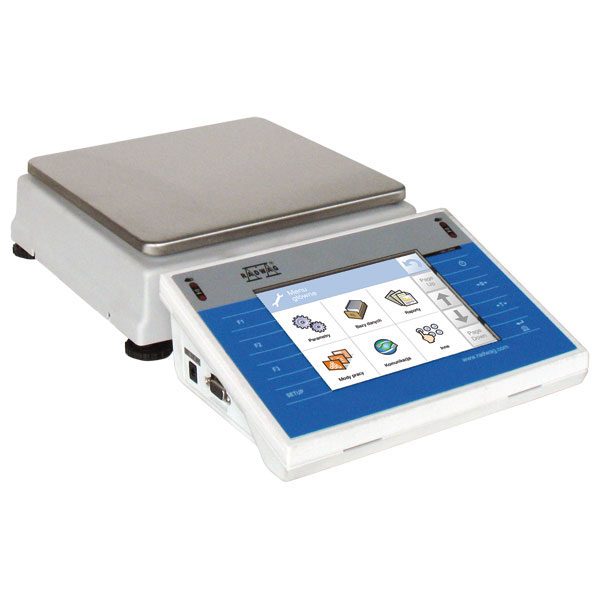

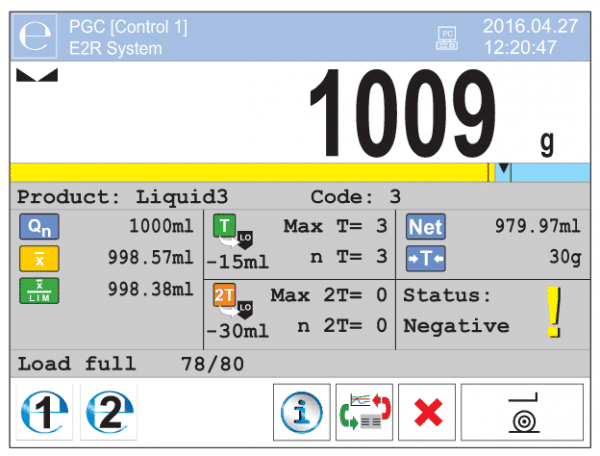

Scales HY/KTP scales are equipped with modules that put packed products control into practice. The module is supported by a database containing products and operators lists. A control started by the scale is automatically stopped after controlling pre-defined quantity of packages (samples). Number of the packages is fixed by the scale program depending on product batch size. Scales feature a 5.7″ colourful, graphic touch screen display and full alphanumeric keyboard aiding scale operation and setting control parameters.

Control cycle runs according to the following scheme:
– operator choice
– product choice
– control start
– acquiring weighing records
– automatic control end after certain packages number
– control report print

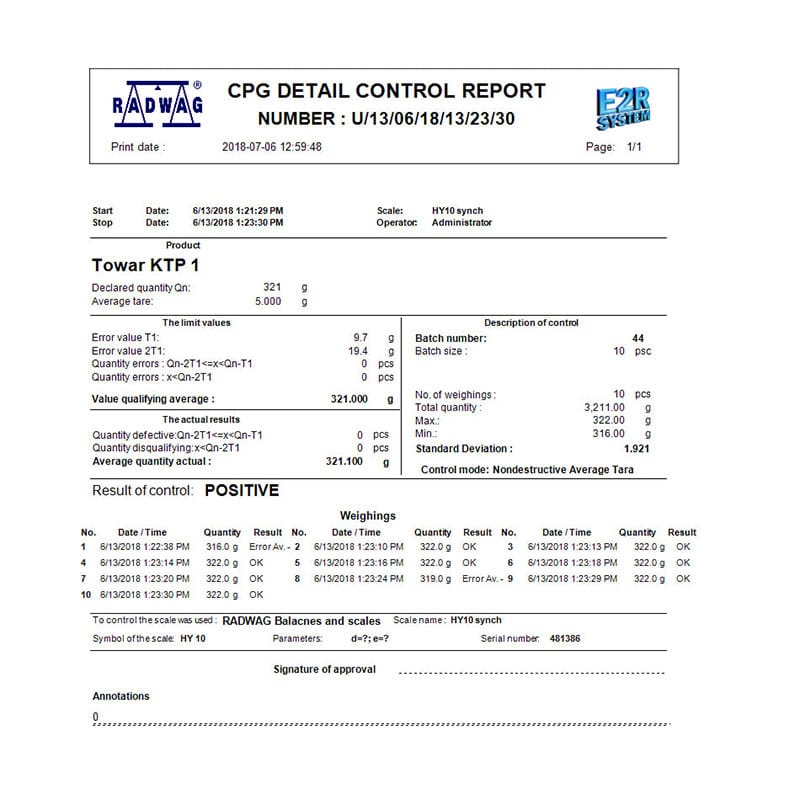

Each carried out control is ended with a final report containing all information that is necessary for prepacked products control report. The report is automatically saved in scale memory and at the same time it can be printed by a printer connected to the scale.

Scale HY/KTP series in single stand version for control of prepacked products is supported by computer application “ViewerKTP”. It is used for monitoring and/or printing of products’ control reports and packages’ tares from completed controls. The reports are printed on a printer connected to the computer.

Scales HY/KTP series for control of prepacked goods (CPG) in network version

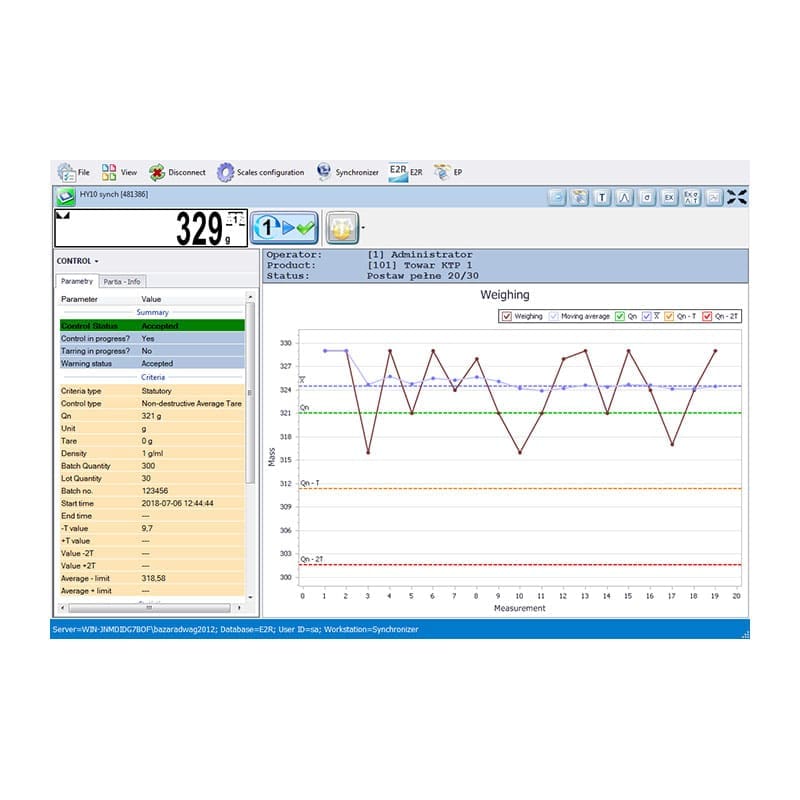

Scale HY/KTPS series connected to a computer software KTP NET 2003 form a multiposition system (network). Each scale is an independent weighing stand and information about control procedure is regularly sent to the computer program that enables real time acquiring data from each connected scale. System enables starting a control from the level of scale or from the level of computer program. The HY/KTPS series enables operation in Ethernet network.

Scale linkage to computer program enables:
– Keeping weighing records from successive weighments in the database
– Automatic printout of control processes from computer software level
– Sending user defined codes from scale to computer software; the codes match weighed product (product code, operator code, batch quantity, batch no., control Start/Stop)
– Defining product codes and their descriptions (names) from the level of computer program, therefore user can assign an individual product name suitable for the company’s branch
