Customer Benefits

  • Safer and easier operator use with low loading deck
  • Designed for food area hygiene and safety
  • Lower overall cost of ownership
  • Manufactured in the UK by MWS Ltd using quality components
  • Four heavy duty ATEX castors with locking mechanism
  • ATEX EU Declaration of Conformity supplied with this model when used with ATEX terminal
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Manufacturer MWS Ltd
Material 304 or 316 Stainless
Standard Finish Bead Blast
Capacity Range 150 - 1500Kg
Sizes 800 x 600mm to 1500 x 1500mm
Upgrades ATEX / Bespoke Sizes
ATEX Rating Zone 1/2 , 21/22
Inquire about "ATEX DTSP Portable Drive Through Scales"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The ATEX DTSP range of drive through scales are designed and manufactured in Leicester by MWS, it’s main feature is a low profile weighing deck with fold down castors for easier moving around site. The Terminal pillar doubles up as a handle to make the DTSP easy to move.

The ATEX DTSP design enables us to ensure that the unit is strong enough to cope with loads up to 1500kg yet remain less than 50mm high and be light enough to move, strength by design.

The ATEX DTSP is manufactured in 304 grade stainless steel (316L available upon request) and is suitable for use in areas where there is an abundance of moisture, fitted with IP68 load cells and junction box as standard making the ATEX DTSP a truly waterproof floor scale built for the rigours of the food and chemical industry.

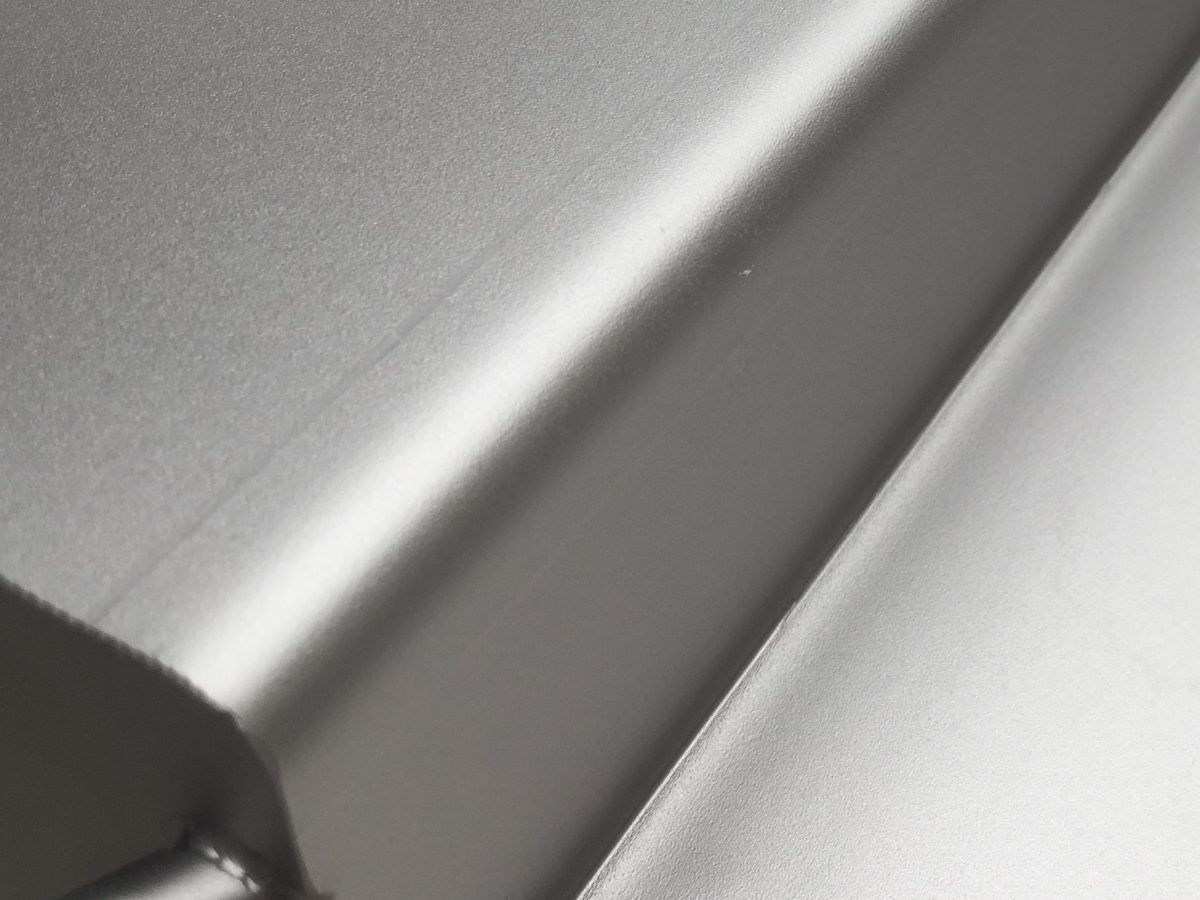

A glass bead blast top and bottom is used to finish which is hygienic for a majority of applications, however upon request a grained or electro polish finish can improve the surface finish.

The ATEX DTSP scale is rated to Zone 1/21 and Zone 2/22. The units are supplied with Flintec ATEX / IECEx rated load cells, a stainless steel Intrinsically safe Junction box and Intrinsically safe cable. This model can be supplied with a range of our ATEX weight indicators or load cell amplifiers via Zener Barriers

Standard Models

Model Size Height Capacity Load Cell
DTSP08ATEX 800 x 800 mm 40 mm 300 – 600 kg Flintec SLB
DTSP10ATEX 1000 x 1000 mm 40 mm 300 – 600 kg Flintec SLB
DTSP12ATEX 1250 x 1000 mm 50 mm 300 – 1,500 kg Flintec SLB
DTSP15ATEX 1500 x 1500mm 50 mm 300 – 1,500 kg Flintec SLB
