Choosing the Right IBC Scale: A Comprehensive Guide

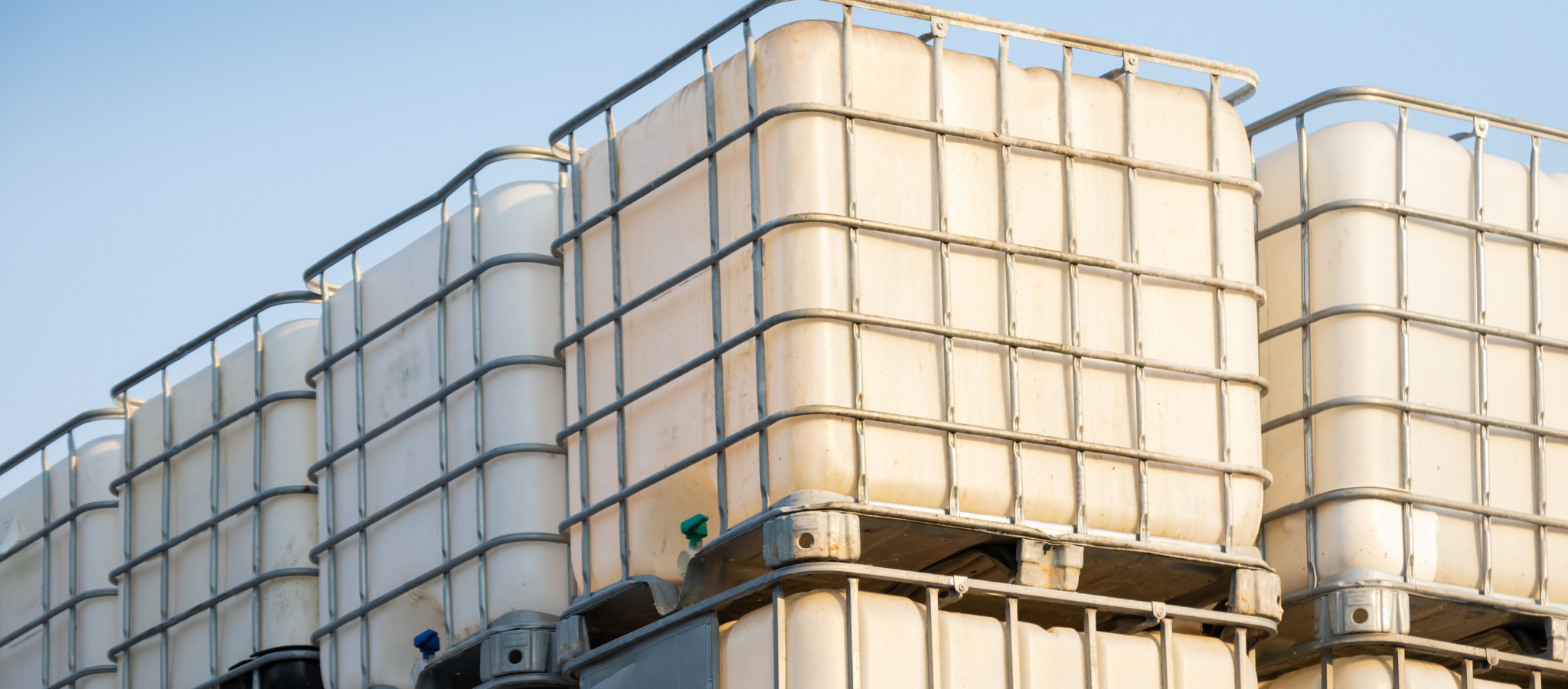

Intermediate Bulk Containers (IBCs), those ubiquitous square tanks, are workhorses in many industries. But understanding how you can accurately weigh their contents can be a challenge for businesses. This blog post will guide you through the factors to consider when selecting the IBC scale that perfectly fits your process needs.

Choosing the Right IBC Scale: A Comprehensive Guide

Understanding Your Needs

Before diving into scales, consider how you’ll be using your IBCs:

  • Filling or Dosing: Do you need to precisely measure as you fill the IBC, or dispense product in controlled amounts?
  • Mobile or Stationary: Will the IBCs be weighed while in transit, or at designated stations?
  • Frequency of Use: How often will you be weighing? High-volume operations might require a more robust solution.

Types of IBC Scales

When it comes to IBC weighing, floor scales are the most common option. The IBC is placed entirely on the platform for weight measurement. Choose a scale with a capacity exceeding your typical IBC weight. There are three primary functions for floor scales when it comes to weighing IBCs:

  • Barrel weighing scales: Barrel weighing scales are designed to handle the weight of drums and barrels, typically ranging from 200 to 1000 litres (about the volume of a large refrigerator). Ensure the scale you choose can accommodate the maximum weight of your barrels, with some buffer for variances in specific gravity of the product and added safety.
  • Mixing scales: Mixing scales often need to handle varying loads as ingredients are added or removed. Ensure the scale can handle the full capacity of your mixing container plus any impellers and mixers that will add load to the scale.
  • Level monitoring scales: Level monitoring scales are used to measure the content level within containers. Choose a scale that can accurately measure the full range of levels, from empty to full capacity.

Other less commonly used options for IBCs include pallet scales and weigh beams.

Material

IBC scales often come in three different types of material, and which one you choose will be based on the environment and usage:

  • 304 Stainless Steel: Suitable for general industrial use, offering a reasonable level of corrosion resistance, ideal for outside applications.
  • 316 Stainless Steel: Ideal for more corrosive environments, providing higher resistance to chemical exposure such as certain acids and chlorine.
  • Mild Steel: Cost-effective but less resistant to corrosion, suitable for indoors and dry environments.

Furthermore, if you operate in an explosive atmosphere, selecting an ATEX-certified scale is essential for compliance and safety. ATEX options ensure the scale can be safely used in environments with flammable gases or dust.

Additional Considerations

Bunding Systems: Incorporating bunding systems with your IBC scale setup can prevent spills and leaks, enhancing safety and compliance with environmental regulations. Bunding provides a containment barrier, especially important in chemical and hazardous material handling.

Indicator Options: Choosing the right indicators is critical for precise measurement and data logging. Options include:

  • Basic Indicators: Offer high precision and easy readability.
  • Panel Mount Indicators: Provide basic functionality for connection to PLCs and other control systems
  • Remote Indicators: Allow monitoring from a distance, enhancing convenience and safety.

Integration with PLC: Modern IBC scales can be integrated with PLC (Programmable Logic Controller) systems for automated processes. This integration allows for real-time data collection, process control, and improved operational efficiency. Ensure the scale you choose is compatible with your existing PLC system or select a scale with built-in PLC connectivity options.

Choosing an IBC Scale Provider

Choosing the right IBC scale involves careful consideration of the specific application, environment, and regulatory requirements. By understanding the nuances of barrel weighing, mixing, and level monitoring scales, and by selecting the appropriate size, material, ATEX options, and additional features like bunding and PLC integration, you can ensure optimal performance and safety in your operations.

For more detailed advice or to discuss your specific needs, feel free to contact us at Micro Weighing Solutions. Our team of experienced engineers are here to help you find the perfect weighing solution tailored to your industry requirements.
